Shipments

Canvas includes a modular shipment system built around ShipmentRouter, which discovers installed shipping provider packages automatically and routes shipment operations to the correct provider based on the shippingModule field.

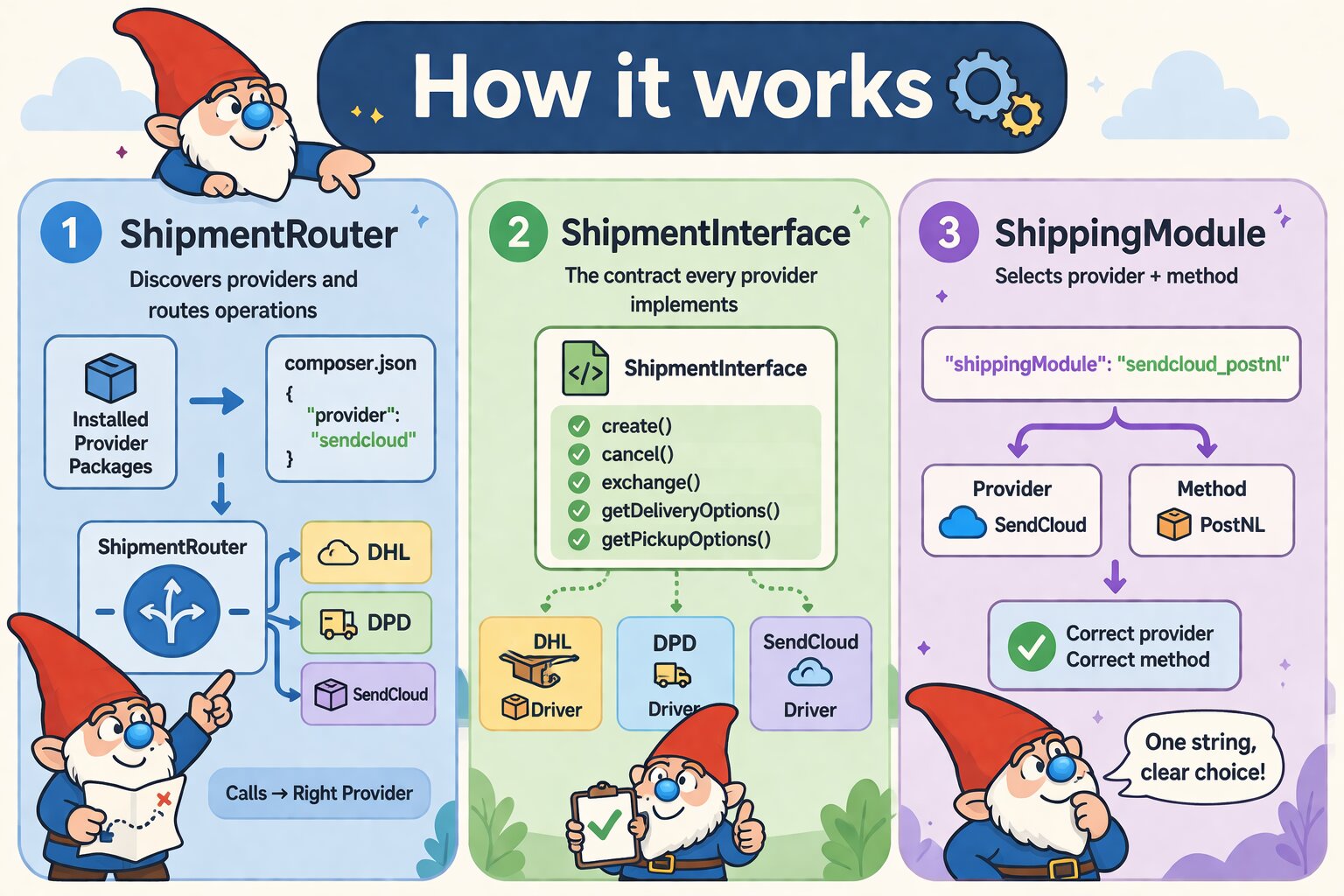

Core Concepts

• ShipmentRouter — Discovers installed provider packages via Composer metadata and routes create(), cancel(), exchange(), getDeliveryOptions(), and getPickupOptions() calls to the correct provider based on the shippingModule field.
• ShipmentInterface — The contract every provider package implements.
• Driver — A concrete provider implementation (e.g. Quellabs\Shipments\SendCloud\Driver). Registered automatically when its package is installed.
• shippingModule — A string identifier that selects both the provider and the shipping method, e.g. 'sendcloud_postnl' or 'myparcel_dpd'.
• driver — A stable provider identifier (e.g. 'sendcloud') used in exchange() to reconcile missed webhooks without knowing the original module name.

Installation

Install the router and at least one provider package:

composer require quellabs/canvas-shipments
composer require quellabs/canvas-shipments-sendcloud

ShipmentRouter scans installed packages for a provider entry in their Composer metadata and registers them automatically.

Supported Providers

The following provider packages are available:

Creating a Shipment

Inject ShipmentInterface via Canvas DI and call create() with a ShipmentRequest:

use Quellabs\Shipments\Contracts\ShipmentInterface;
use Quellabs\Shipments\Contracts\ShipmentRequest;
use Quellabs\Shipments\Contracts\ShipmentAddress;
use Quellabs\Shipments\Contracts\ShipmentCreationException;

class OrderFulfillmentService {

    public function __construct(private ShipmentInterface $router) {}

    public function shipOrder(): void {
        $address = new ShipmentAddress(
            name:              'Jan de Vries',
            street:            'Keizersgracht',
            houseNumber:       '123',
            houseNumberSuffix: 'A',
            postalCode:        '1015 CJ',
            city:              'Amsterdam',
            country:           'NL',
            email:             'jan@example.com',
            phone:             '+31612345678',
        );

        // Fetch available methods and let the customer choose — persist $chosen->methodId on the order.
        // Required for providers like SendCloud; omit for providers that select a method automatically.
        $options = $this->router->getDeliveryOptions('sendcloud_postnl', $address);
        $chosen  = $options[0]; // whichever the customer selected at checkout

        $request = new ShipmentRequest(
            shippingModule:  'sendcloud_postnl',
            reference:       'ORDER-12345',
            deliveryAddress: $address,
            weightGrams:     1200,
            methodId:        $chosen->methodId, // DeliveryOption::$methodId — null for providers that don't require it
        );

        try {
            $result = $this->router->create($request);

            // Persist these — needed for tracking, webhooks, and cancellation
            echo $result->parcelId;     // provider-assigned parcel ID
            echo $result->trackingCode; // carrier tracking code
            echo $result->trackingUrl;  // public tracking URL for customer emails
        } catch (ShipmentCreationException $e) {
            // handle error
        }
    }
}

ShipmentAddress fields

ShipmentRequest fields

methodId requirement by provider

methodId is optional at the contract level — pass null or omit it for providers that select a shipping method automatically. Providers that require it will throw a ShipmentCreationException if it is absent.

packageType values by provider

packageType is a physical classification hint passed to providers that structure their API around parcel type rather than method IDs. Omit it to let the driver decide.

ShipmentResult fields

The ShipmentResult returned by create() contains all identifiers needed for subsequent operations. Persist parcelId, provider, and trackingCode alongside your order record.

Handling Webhook Events

When a shipment status changes, the provider's webhook controller emits a shipment_exchange signal carrying a ShipmentState object. Listen for it using the @ListenTo annotation on any Canvas-managed class:

use Quellabs\Canvas\Annotations\ListenTo;
use Quellabs\Shipments\Contracts\ShipmentState;
use Quellabs\Shipments\Contracts\ShipmentStatus;

class OrderService {

    /**
     * @ListenTo("shipment_exchange")
     */
    public function onShipmentExchange(ShipmentState $state): void {
        match ($state->state) {
            ShipmentStatus::InTransit       => $this->markShipped($state->reference, $state->trackingCode),
            ShipmentStatus::Delivered       => $this->markDelivered($state->reference),
            ShipmentStatus::DeliveryFailed  => $this->scheduleRetry($state->reference),
            ShipmentStatus::ReturnedToSender => $this->handleReturn($state->reference),
            ShipmentStatus::Lost            => $this->openClaim($state->reference),
            default                         => null,
        };
    }
}

Canvas wires the listener automatically. The shipment_exchange signal carries only state — database handling belongs to your application.

Reconciling Missed Webhooks

If a webhook was missed, call exchange() with the driver name stored in ShipmentResult::$provider and the provider-assigned parcel ID to fetch the current state on demand:

use Quellabs\Shipments\Contracts\ShipmentExchangeException;

try {
    $state = $this->router->exchange(
        driver:   'sendcloud',      // ShipmentResult::$provider
        parcelId: 'SC-123456789',   // ShipmentResult::$parcelId
    );

    echo $state->state->name;       // e.g. 'Delivered'
    echo $state->trackingCode;
} catch (ShipmentExchangeException $e) {
    // handle error
}

Cancelling a Shipment

Call cancel() before the parcel has been handed to the carrier. Not all providers support cancellation after label generation — check CancelResult::$accepted and CancelResult::$message to determine the outcome:

use Quellabs\Shipments\Contracts\CancelRequest;
use Quellabs\Shipments\Contracts\ShipmentCancellationException;

try {
    $result = $this->router->cancel(new CancelRequest(
        shippingModule: 'sendcloud_postnl',
        parcelId:       'SC-123456789',
        reference:      'ORDER-12345',
    ));

    if ($result->accepted) {
        // parcel successfully cancelled
    } else {
        echo $result->message; // e.g. 'Parcel already in transit'
    }
} catch (ShipmentCancellationException $e) {
    // handle error
}

Delivery Options

Fetch available home delivery methods for a given module to present to the customer at checkout. Pass a ShipmentAddress for providers that compute delivery windows per recipient location (e.g. MyParcel). Providers that do not require an address silently ignore it:

use Quellabs\Shipments\Contracts\ShipmentAddress;

$options = $this->router->getDeliveryOptions('myparcel_postnl', $deliveryAddress);

foreach ($options as $option) {
    echo $option->label;         // 'Tomorrow 09:00–12:00'
    echo $option->carrierName;   // 'PostNL'
    echo $option->methodId;      // pass this as ShipmentRequest::$methodId
}

Store the chosen methodId on the order and pass it in ShipmentRequest::$methodId when creating the shipment.

Pickup Points

Fetch nearby service points for click-and-collect. The address is used as the search origin — providers return points sorted by proximity:

$points = $this->router->getPickupOptions('sendcloud_postnl', $deliveryAddress);

foreach ($points as $point) {
    echo $point->name;           // 'Albert Heijn Keizersgracht'
    echo $point->street . ' ' . $point->houseNumber;
    echo $point->distanceMetres; // distance from the queried address
    echo $point->locationCode;   // pass this as ShipmentRequest::$servicePointId
}

Pass the chosen locationCode as ShipmentRequest::$servicePointId when creating the shipment.

Box Packing

ShipmentRouter exposes a pack() method that calculates the optimal box assignment for a set of items before creating a shipment. Box sizes and weight limits are configured in config/shipment_packing.php. All dimensions are in millimetres, all weights in grams:

use Quellabs\Shipments\Packing\PackableItem;

$result = $this->router->pack([
    new PackableItem('Widget A', width: 100, length: 80,  depth: 60,  weight: 250),
    new PackableItem('Widget B', width: 200, length: 150, depth: 100, weight: 800),
    new PackableItem('Widget C', width: 90,  length: 90,  depth: 90,  weight: 400),
]);

if ($result->hasUnpackedItems()) {
    // one or more items exceed the dimensions or weight limit of every box in the catalog
}

foreach ($result->getPackedBoxes() as $packed) {
    echo $packed->getBox()->getReference(); // 'small', 'medium', 'large'
    echo $packed->getGrossWeight();         // box tare weight + all item weights in grams

    $shipmentRequest = new ShipmentRequest(
        shippingModule: 'sendcloud_postnl',
        reference:      'ORDER-12345',
        deliveryAddress: $address,
        weightGrams:    $packed->getGrossWeight(),
        methodId:       8,
    );
}

Weight is balanced across multiple boxes of the same size where possible, within the configurable per-box weight ceiling. Always check hasUnpackedItems() before proceeding — unpacked items require manual intervention.

Shipment State Reference

ShipmentState is emitted via the shipment_exchange signal on every webhook hit and every exchange() call.

Shipment Statuses

Discovering Registered Modules

Retrieve all shipping module identifiers currently registered across all installed providers:

$modules = $this->router->getRegisteredModules();
// ['sendcloud_postnl', 'sendcloud_dhl', 'myparcel_postnl', ...]

Adding a Provider Package

Any package can register itself as a shipping provider by declaring a provider entry in its composer.json:

"extra": {
    "discover": {
        "shipments": {
            "provider": "Quellabs\\Shipments\\SendCloud\\Driver",
            "config": "/config/sendcloud.php"
        }
    }
}

The declared class must implement ShipmentProviderInterface. ShipmentRouter validates this at discovery time and silently skips any class that does not. If two installed packages declare the same module identifier, a RuntimeException is thrown at boot.
